Class 130 Enameled Aluminum Wire

Class 130 enameled aluminum wire is designed specifically for electrical applications, particularly for the manufacturing of coils, transformers, and motors. The "Class 130" designation refers to the heat resistance level of the insulation material used on the wire, indicating that it can operate at temperatures up to 130 degrees Celsius (266 degrees Fahrenheit) without degradation.

Class 130 enameled aluminum wire is suitable for applications requiring moderate temperature resistance, with a temperature rating of up to 130°C. It is typically used in motors and transformers with lower heat requirements.

HC Aluminum is a professional manufacturer and supplier of enameled wire. Our products are UL (E234565) certified and comply with RoHS standards. All HC Aluminum products are manufactured according to IEC-60317, GB/T, JIS, and NEMA standards.

Class 130 Enameled Aluminum Wire Material Composition

The material is made of high-purity aluminum, which has excellent conductivity, typically around 61% of that of copper.

Aluminum Core: The wire is primarily made of aluminum, which is lightweight and has good conductivity, making it a cost-effective alternative to copper wire.

Class 130 Enameled Aluminum Wire Parameters

130 Enameled Round Aluminum Wire

Enamele130 Copper Clad Aluminum Wire(ECCA)

Class 130 Enameled Aluminum Wire Insulation Layer

The wire is coated with a thin layer of enamel, which serves as electrical insulation. This insulation layer is crucial for preventing short circuits and ensuring safe operation.

Class 130 Polyester Enameled Aluminum Wire

Class 130 polyester enameled aluminum wire is made of aluminum and coated with a polyester enamel insulation layer. The rated operating temperature of this wire is up to 130 degrees Celsius (266 degrees Fahrenheit).

Insulation: Polyester enamel provides good electrical insulation and is resistant to moisture and chemicals, enhancing the durability of the wire.

Class 130 Polyesterimide Enameled Aluminum Wire

Class 130 polyesterimide enameled aluminum wire is a high-performance wire made of aluminum and coated with a polyesterimide enamel insulation layer. The rated operating temperature of this wire is also up to 130 degrees Celsius (266 degrees Fahrenheit).

Insulation: Compared to standard polyester enamel, polyesterimide enamel offers excellent thermal and electrical insulation properties. It has outstanding heat resistance, chemical resistance, and mechanical stress resistance.

Class 130 Enameled Aluminum Wire Characteristics

• Thermal Performance: The Class 130 insulation layer can withstand continuous operation at temperatures up to 130°C. The enamel coating has good heat resistance, helping to maintain the integrity of the wire under high-temperature conditions.
• Electrical Performance: Although aluminum's conductivity is lower than that of copper, it is still widely used due to its good weight-to-strength ratio and cost advantages.
• Corrosion Resistance: Aluminum naturally forms a protective oxide layer, enhancing its durability and corrosion resistance in various environments.
• Flexibility: The wire maintains good flexibility, making it suitable for winding and forming into various shapes without breaking.
• Aging Resistance: The enamel insulation layer is designed to be aging-resistant and to maintain its performance even after prolonged exposure to high temperatures.

HC Aluminum Popular Class 130 Enameled Aluminum Wire

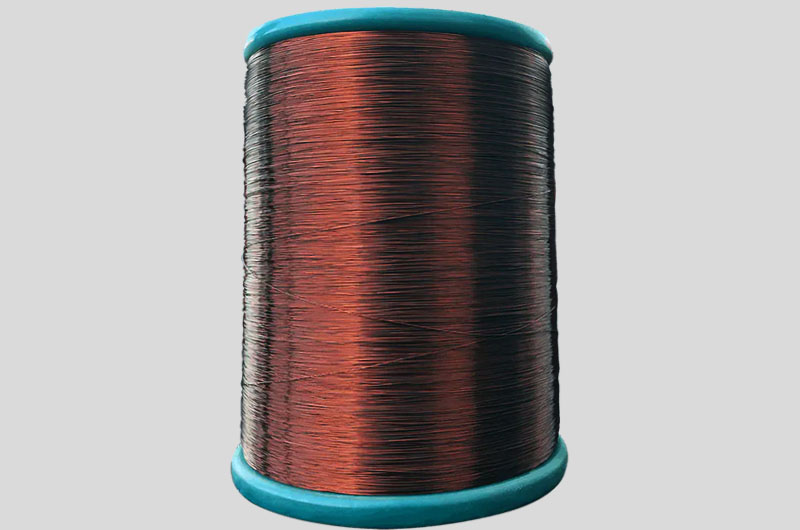

• Class 130 Enamelled Aluminium Round Wire

  This round wire is insulated with an enamel coating, providing excellent electrical insulation and thermal resistance up to 130°C (266°F). It is commonly used in applications such as motors, transformers, and coils, where flexibility and durability are essential. The round profile is ideal for winding and offers efficient space utilization in electrical devices.

• Class 130 Enamelled Aluminium Flat Wire

  This flat wire features an enamel insulation and is designed for applications that benefit from a flat profile, such as transformers and inductors. The enamel coating provides thermal resistance up to 130°C (266°F), ensuring good electrical insulation. The flat shape allows for improved heat dissipation and can enhance winding efficiency, making it suitable for various electrical and electronic applications.

• Class 130 Enameled Copper Clad Aluminum Wire (ECCA)

  ECCA consists of an aluminum core coated with a layer of copper, insulated with an enamel coating. It combines the lightweight properties of aluminum with the excellent conductivity of copper, offering thermal resistance up to 130°C (266°F). This wire is ideal for applications requiring reduced weight and high performance, such as in aerospace and automotive industries, while still maintaining good electrical characteristics.

Class 130 Enameled Aluminum Wire Applications

• Motors: Commonly used for winding in stators and rotors, where efficient heat dissipation and electrical performance are critical.
• Transformers: Well-suited for winding applications in transformers due to its electrical efficiency and heat resistance.
• Inductors and Coils: Suitable for various inductor and coil applications, providing reliable performance in circuits requiring inductive components.
• Household Appliances: Used in small motors within household appliances, contributing to improved energy efficiency.

Class 130 enameled aluminum wire is an essential component in various electrical applications, offering a balance of performance, cost, and thermal resistance. Its unique properties make it suitable for high-temperature environments, making it a popular choice in industries such as automotive, aerospace, and consumer electronics. When selecting wire for specific applications, it is important to consider temperature requirements, conductivity needs, and environmental factors that may affect performance.
