2014 Aluminum Bar
What is 2014 grade aluminium?
2014 grade aluminum is a high-strength aluminum alloy primarily alloyed with copper and is known for its excellent mechanical properties. It belongs to the 2xxx series of aluminum alloys, which are primarily copper-based alloys, and is commonly used in aerospace and high-stress applications due to its strength and machinability.
The 2014 aluminum bar is a precipitation-hardened aluminum alloy with copper as the main alloying element, providing superior mechanical properties and good machinability, making it particularly suitable for applications requiring high strength and hardness.
2014 Aluminum Bar Properties
- 1. High Strength and Hardness: The 2014 aluminum bar is one of the higher-strength commercial aluminum alloys and is especially suitable for heavy-duty structural components. Its strength can be further enhanced by heat treatment to meet the demands of industries like aerospace and heavy machinery.
- 2. Poor Corrosion Resistance: While the 2014 aluminum bar has excellent mechanical properties, its corrosion resistance is relatively weak. To address this, it is often clad with a layer of pure aluminum to significantly improve its corrosion resistance, especially in humid environments.
- 3. Good Machinability: The 2014 aluminum bar has good machinability, particularly in the heat-treated state. It is easy to perform machining operations such as cutting and turning, making it widely used in the production of complex parts.
- 4. Welding Performance: Due to its high copper content, the 2014 aluminum bar tends to crack during welding, requiring special processes and conditions. However, in some cases, it can be joined by riveting or specific welding methods like friction stir welding.
HC Aluminum 2014 aluminum bar specifications
| Alloy | 2014, 2A14 |
| Equivalent names | UNS A92014, UNS A92014, EN AW-2014, AlCu4SiMg, 3.1255, AA 2014, Al2014 |
| 2014 aluminum bar temper | T3, T4, T6, T651, T6510, T351, T6511 |
| 2014 aluminum bar types | Square, Round, Hex, Flat, Wire In Black & Bright Finish |
| 2014 extruded aluminum round bar diameter | Φ5-200mm |
| 2014 extruded aluminum square bar diameter | 5-200mm |
| 2014 extruded aluminum hexagonal bar diameter | 5-200mm |
| 2014 extruded aluminum flat bar specifications | Thickness:0.15-40mm Width:10-200mm |
| 2014 aluminum cast bar diameter | Φ124-1350mm |
| 2014 aluminum forged bar diameter | Φ100-650mm |
The standard specifications for 2014 include ASTM B209, UNS A92014, etc.
Hot Selling Products of HC Aluminum 2014 Aluminum Bar
-

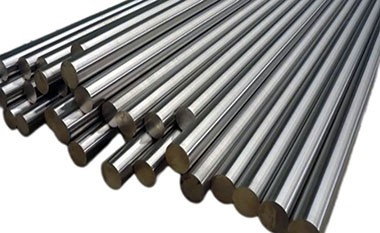

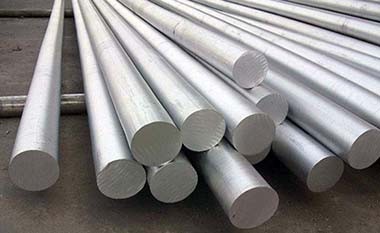

2014 Aluminum Round Bar
A cylindrical rod of 2014 aluminum alloy, commonly used in aerospace and defense applications due to its high strength and good machinability. It is suitable for high-stress structural components.
-
2014 T6 Aluminum Bar
This is a 2014 aluminum alloy bar that has been heat-treated to the T6 condition, providing increased strength and hardness. It’s commonly used in industries that require strong, durable materials, such as aerospace and heavy machinery.
-
2014 T6 Aluminum Round Bar
A round bar made of 2014 aluminum alloy in the T6 condition. It combines high strength with good machinability, ideal for components like aircraft fittings and other high-load structural parts.
-
2014 Aluminum Square Bar
A square-shaped bar of 2014 aluminum alloy, providing good strength and machinability. It’s often used in structural and support applications where geometric stability is needed.
-
2014 Aluminum Rectangle Bar
A rectangular bar made from 2014 aluminum alloy, suitable for structural frames and other components requiring high strength and stiffness, especially in aerospace and military uses.
-
2014 Aluminum Flat Bar
A flat, rectangular bar of 2014 aluminum, known for its high strength and good machinability. It's often used in machine parts, structural components, and heavy-duty applications in aerospace and transportation industries.
Chemical composition of 2014 aluminum bar
| Element | Composition(%) |
| 2014 | |
| Si | 0.15-1.2 |
| Fe | 0.7 |
| Cu | 3.9-5.0 |
| Mn | 0.40-1.2 |
| Mg | 0.20-0.8 |
| Ti | 0.15 |
| Cr | 0.1 |
| Ni | - |
| Zn | 0.25 |
| Zr+Ti | - |
| Each | 0.05 |
| Total | 0.15 |
| Al | Re |
Physical properties of 2014 aluminum bar
| Physical Property | Value |
| Density | 2.82 g/cm³ |
| Modulus of Elasticity | 71 GPa |
| Electrical Resistivity | 0.045 x10^-6 Ω.m |
| Thermal Conductivity | 138 W/m.K |
| Thermal Expansion | 23 x10^-6 /K |
| Melting Point | 535 ℃ |
Mechanical properties of 2014 aluminum bar
| Material | Temper | Diameter/mm | Tensile Strength min (N/mm2) | Yield Strength (min) (N/mm2) | Elongation on 5.65 V (min) |
| EN AW-2014 Aliminun Bar | T4 | <20 | 370 | 230 | 11 |
| EN AW-2014 Aliminun Bar | T4 | 20-75 | 390 | 250 | 11 |
| EN AW-2014 Aliminun Bar | T4 | 75-150 | 390 | 250 | 9 |
| EN AW-2014 Aliminun Bar | T4 | 150-200 | 370 | 230 | 8 |
| EN AW-2014 Aliminun Bar | T6510 | 20-75 | 480 | 435 | 7 |
| EN AW-2014 Aliminun Bar | T6510 | 75-150 | 465 | 420 | 7 |
| EN AW-2014 Aliminun Bar | T6510 | 150-200 | 435 | 390 | 7 |
Applications of 2014 Aluminum Bar
- 1. Aerospace Structural Components: The 2014 aluminum bar is widely used in aircraft structural components due to its high strength and heat treatment properties, such as wing frames, skin stringers, and landing gear components, making it particularly suitable for parts that must withstand high stress. Additionally, it is used in the first stage fuel tanks of multistage rockets and spacecraft components.
- 2. Heavy Machinery and Automotive Industry: In the automotive field, 2014 aluminum bars are commonly used to manufacture high-strength parts, such as truck frames, suspension systems, and wheels. These components need to bear heavy loads, making the strength and durability of the 2014 alloy very important.
- 3. Military and Defense: In military applications, 2014 aluminum bars are used to manufacture critical parts for tanks and armored vehicles, as well as other structures that require high strength.
- 4. Industrial and Mechanical: The 2014 aluminum bar is suitable for components operating under high temperatures and pressures, such as heavy forgings, thick plates, and extrusions. These materials are widely used in critical parts of industrial equipment, particularly in fields like mechanical engineering and petrochemicals.
What is the equivalent of 2014 aluminum?
- AA 2014 (Aluminum Association designation)
- UNS A92014 (Unified Numbering System)
- DIN 3.1254 (German standard)
What is the difference between 2014 and 2024 aluminum?
Below is a comparison table between 2014 aluminum alloy and 2024 aluminum alloy:
| Properties | 2014 Aluminum Alloy | 2024 Aluminum Alloy |
| Mechanical Properties | High strength, excellent machinability | High strength with good fatigue resistance |
| Corrosion Resistance | Relatively low | Relatively high |
| Application Fields | Aerospace, military vehicles, structural components | Aerospace structures, wing surfaces, fuselage components |
| Heat Treatment | Heat treatable, common conditions include T6 | Heat treatable, common conditions include T3 and T4 |
